Ring saw
Home » Products » spine » Ring saw » Ring saw
Ring saw

loading

Ring saw Ring saw
Ring saw Ring saw

loading

Ring saw

Availability:
Quantity:

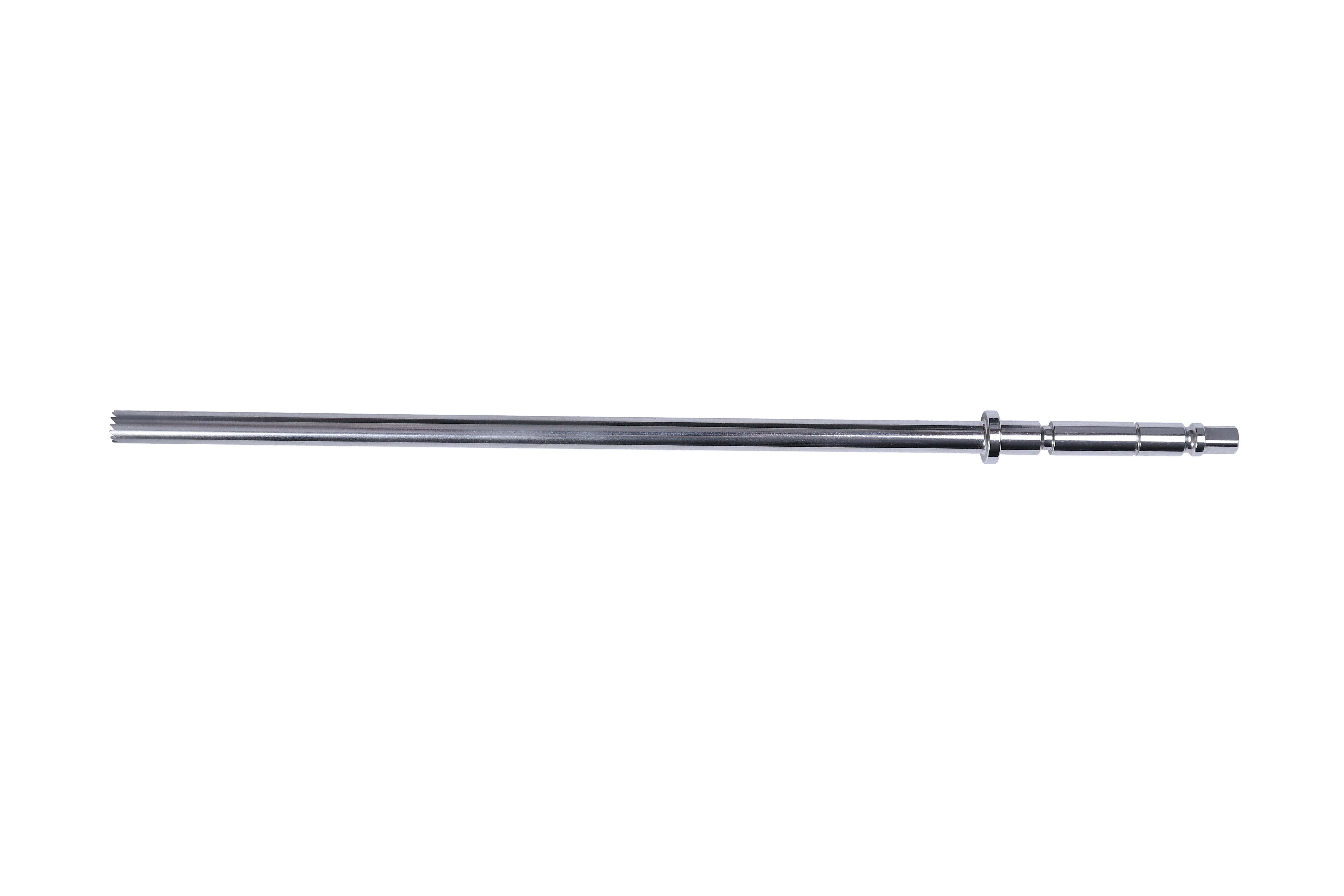

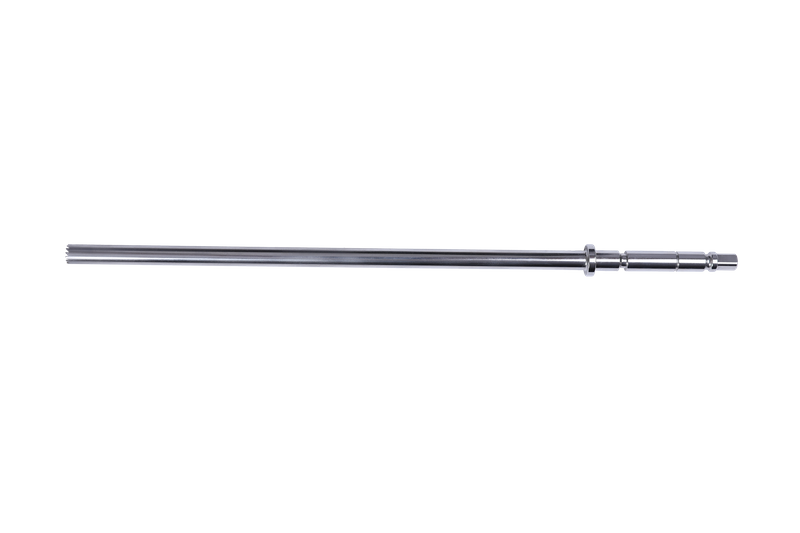

Six-spec reverse thread ring saw design to realize integrated operation of minimally invasive nail extraction and bone core biopsy/marrow core decompression. It can be used with a T-shaped handle or connected to a power tool.
Product usage

●The ring drill saw end is designed to fit into the insertion screws, which can be removed while minimizing bone loss. There are six specifications available—internal diameters of 5mm, 6.5mm, 8mm, 9mm, 10mm and 11mm respectively. Accurate and controllable operation can be achieved with the T-shaped handle.

●The hollow T-handle and ring saw kit can be used with standard 1.6mm threaded K-Wire needles to facilitate grabbing and removing core bone samples. It is suitable for bone biopsy or core decompression surgery. The diverse inner diameter specifications of ring saws allow for sufficient bone samples required for pathological testing.




Product Specifications:
modelsize
LYHJ1815.0Length: 181mm Inner diameter: 5mm
LYHJ1816.5Length: 181mm Inner diameter: 6.5mm
LYHJ1818.0Length: 181mm Inner diameter: 8mm
LYHJ1819.0Length: 181mm Inner diameter: 9mm
LYHJ18110.0Length: 181mm Inner diameter: 10mm
LYHJ18111.0Length: 181mm Inner diameter: 11mm
Freely customizable
